Features:
①. 37 Sample positions.
②. 28 Reagent positions.
③. 48 Reaction cuvettes.
④. 200 Tests per hour.
⑤. Probe anti-collision function,liquid level dectection function.

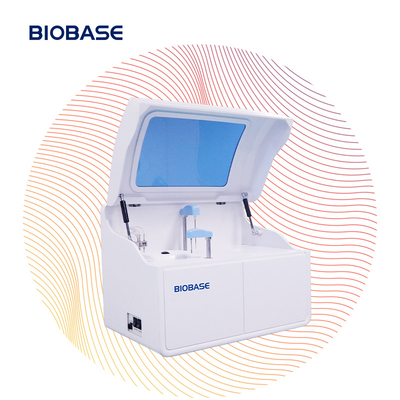

Model | BK-200mini( NEW BK-200) | ||||
Overall Performance | Throughput | 200 Tests/hour | |||
Analysis Method | End-point, Fixed-time, Rate(Kinetic) | ||||
Sample & Reagent System | Sample Positions | 37 sample positions | |||
Reagent Position | 28 reagent positions | ||||
Sample Volume | 2~70μ | ||||
Reagent Volume | 20~350μ | ||||
Probe Washing | Automatic washing interior and exterior | ||||
Reagent Cooling | Refrigerated tray with independent switch | ||||
Reaction System | Temperature Control | 37+0.1℃, real-time monitoring | |||
Cuvettes | 48 reusable cuvettes,optical length 6mm | ||||
Mixer Probe | Independent stirring | ||||
Washing | Automatic cuvettes washing | ||||
STAT function | YES | ||||
Optical System | Light Source | 6V/10W halogen lamp | |||
Spectrophotometry | Post-spectral spectrophotometry | ||||
Wavelength | 340,405,450,510,546,578,630,700nm | ||||
Absorbance | 0~3.0Abs | ||||
Calibration & QC | Calibration | Linear:K factor, 1-point ,2-point and multipoint linear Non-Linear:Spline,Polygon, Index, Ogarithm, Logit-4P, Logit-5P | |||
Quality Control | Real-time QC, Westgard multi rule, Cumulative Sum Check,Twin Plot(2D) | ||||
Data Management | Software | Windows 7/8/10 , 32or 64bit | |||
LIS System | Bi-direction,support HL7 protocol | ||||
Interface | LAN port access | ||||
Printer | External,multiple reporting mode available | ||||
Working Conditions | Power Supply | AC220V±10%,50/60Hz, 110V±10%,60Hz, 300W | |||
Temperature | 10~30℃ | ||||
Water Consumption | Deionized water:<5L/H | ||||
Humidity | 30-80% | ||||
Size & Weight | External Size (W*D*H) | 625*425*460mm | |||
Net Weight | 36kg | ||||
Package Size (W*D*H) | 721*531*855mm | ||||
Gross Weight | 50kg |
